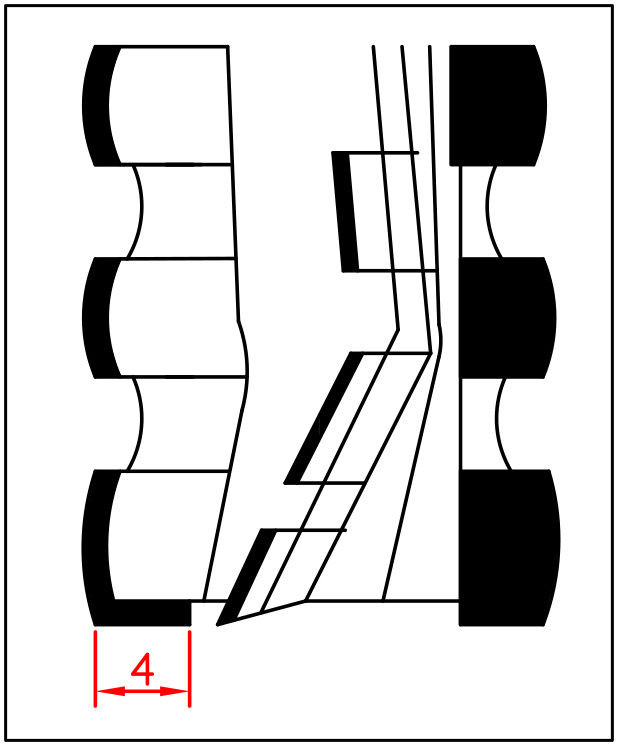

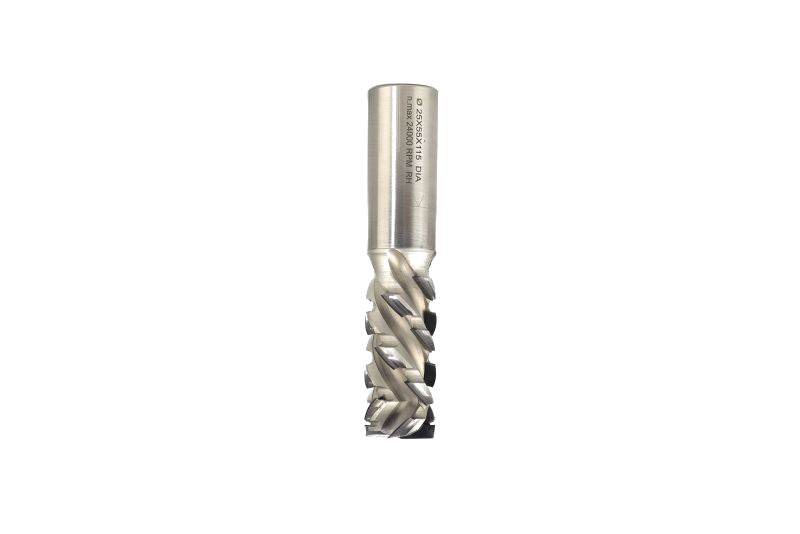

ROUTER BITS TOP MASTER 45° 2 CUTTING POINT - 4 DIVISION- STEEL BODY

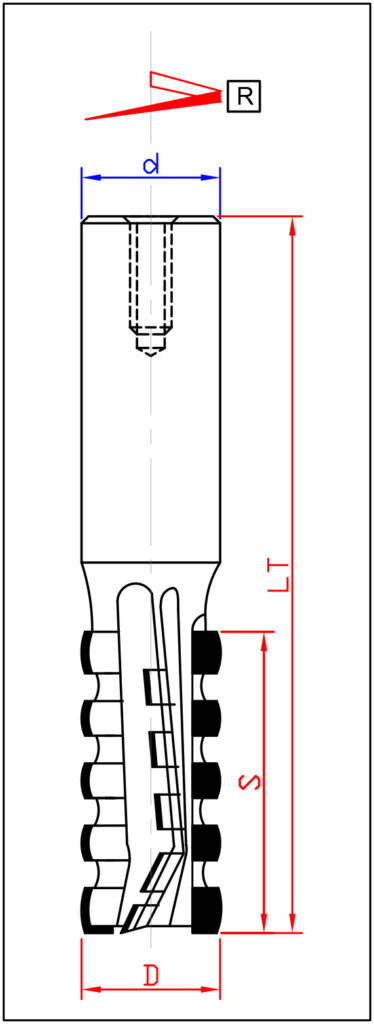

D

L

d

LT

Z.2

H

CODE RH

CODE LH

20

19

20X50

79

8+2 dia

4

• PTD01.JCJ08.401.R

• PTD01.JCJ08.401.L

20

25

20X50

85

10+2 dia

4

• PTD02.JCJ10.401.R

• PTD02.JCJ10.401.L

20

31

20X50

91

12+2 dia

4

• PTD03.JCJ12.401.R

• PTD03.JCJ12.401.L

20

37

20X50

97

16+2 dia

4

• PTD04.JCJ14.401.R

• PTD04.JCJ14.401.L

20

43

20X50

103

18+2 dia

4

• PTD05.JCJ16.401.R

• PTD05.JCJ16.401.L

20

49

20X50

109

20+2 dia

4

• PTD06.JCJ18.401.R

• PTD06.JCJ18.401.L

20

55

20X50

115

22+2 dia

4

• PTD07.JCJ20.401.R

• PTD07.JCJ20.401.L

22

25

20X50

85

10+2 dia

4

• PTD02.KCL10.401.R

• PTD02.KCJ10.401.L

22

31

20X50

91

12+2 dia

4

• PTD03.KCJ12.401.R

• PTD03.KCJ12.401.L

22

37

20X50

97

16+2 dia

4

• PTD04.KCJ18.401.R

• PTD04.KCJ18.401.L

22

43

20X50

103

18+2 dia

4

• PTD05.KCJ20.401.R

• PTD05.KCJ20.401.L

22

49

20X50

109

20+2 dia

4

• PTD06.KCJ22.401.R

• PTD06.KCJ22.401.L

22

55

20X50

115

22+2 dia

4

• PTD07.KCJ24.401.R

• PTD07.KCJ24.401.L

25

19

25X55

84

6+2 dia

4

• PTD01.LCL08.401.R

• PTD01.LCL08.401.L

25

25

25X55

89

8+2 dia

4

• PTD02.LCL10.401.R

• PTD02.LCL10.401.L

25

31

25X55

96

10+2 dia

4

• PTD03.LCL12.401.R

• PTD03.LCL12.401.L

25

37

25X55

102

12+2 dia

4

• PTD04.LCL14.401.R

• PTD04.LCL14.401.L

25

43

25X55

108

14+2 dia

4

• PTD05.LCL16.401.R

• PTD05.LCL16.401.L

25

49

25X55

114

16+2 dia

4

• PTD06.LCL18.401.R

• PTD06.LCL18.401.L

25

55

25X55

120

18+2 dia

4

• PTD07.LCL20.401.R

• PTD07.LCL20.401.L

25

61

25X55

125

20+2 dia

4

• PTD08.LCL22.402.R

• PTD08.LCL22.402.L

25

67

25X55

132

22+2 dia

4

• PTD09.LCL24.401.R

• PTD09.LCL24.401.L

25

73

25X55

138

24+2 dia

4

• PTD10.LCL26.401.R

• PTD10.LCL26.401.L
