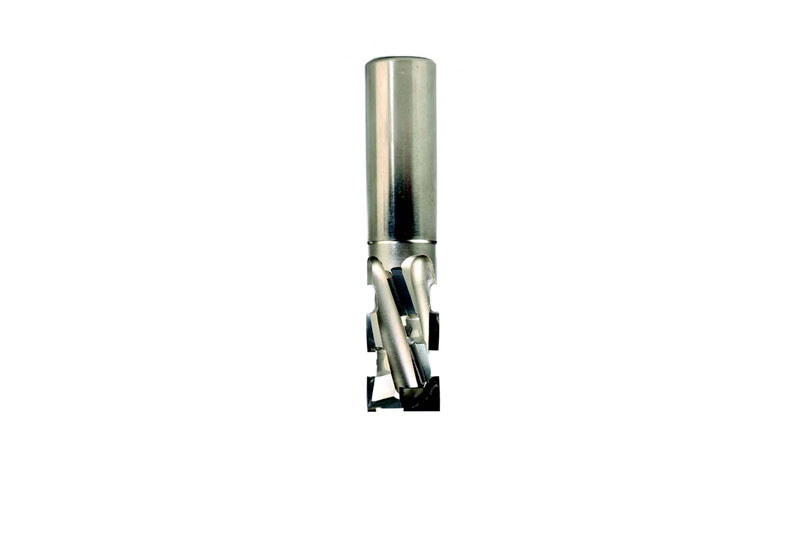

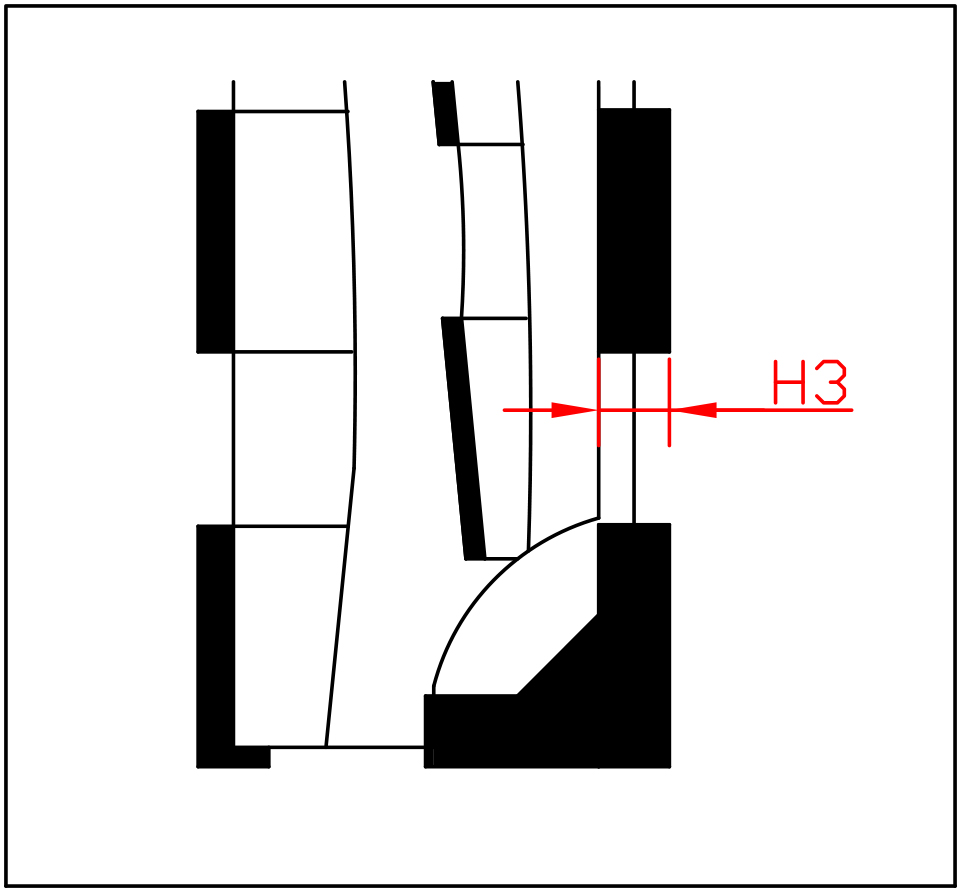

PUNTE PANTOGRAFO IN DIAMANTE ELICOIDALE H3 2 PUNTI DI TAGLIO - 4 DIVISIONI - CORPO IN ACCIAIO

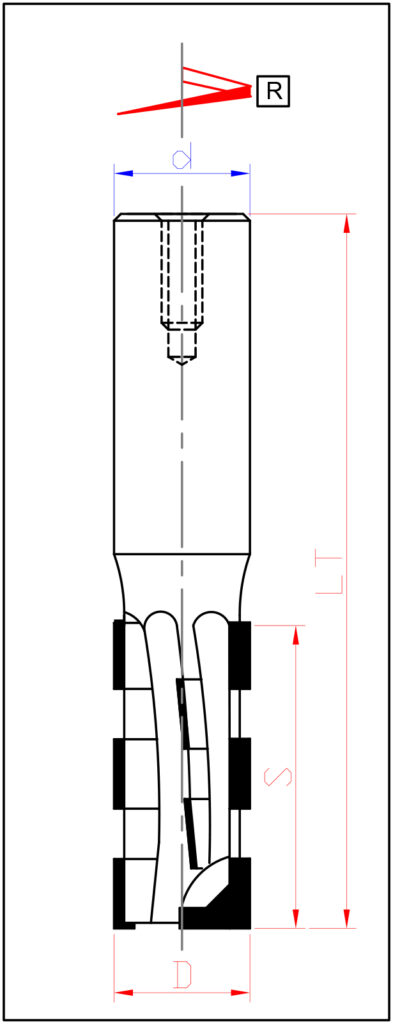

D

S

d

LT

Z.2

H

CODE RH

CODE LH

12

27

12X40

75

6+1dia

3

• P4D01.DCD06.3A1.R

• P4D01.DCD06.3A1.L

12

34

12X40

77

8+1dia

3

• P4D02.DCD08.3A1.R

• P4D02.DCD08.3A1.R

16

27

16X50

87

6+1 dia

3

• P4D01.HCH06.301.R

• P4D01.HCH06.301.L

16

36

16X50

96

8+1dia

3

• P4D02.HCH08.301.R

• P4D02.HCH08.301.L

16

44

16X50

105

10+1dia

3

• P4D03.HCH10.301.R

• P4D03.HCH10.301.L

16

53

16X50

113

12+1dia

3

• P4D04.HCH12.301.R

• P4D04.HCH12.301.L

18

36

20X50

96

8+1dia

3

• P4D02.ICJ08.301.R

• P4D02.ICJ08.301.L

18

44

20X50

105

10+1dia

3

• P4D03.ICJ10.301.R

• P4D03.ICJ10.301.L

18

53

20X50

113

12+1dia

3

• P4D04.ICJ12.301.R

• P4D04.ICJ12.301.L

20

27

20X50

87

6+1 dia

3

• P4D01.JCJ06.301.R

• P4D01.JCJ06.301.L

20

36

20X50

96

8+1dia

3

• P4D02.JCL08.301.R

• P4D02.JCL08.301.L

20

44

20X50

105

10+1dia

3

• P4D03.JCJ10.301.R

• P4D03.JCJ10.301.L

20

53

20X50

113

12+1dia

3

• P4D04.JCJ12.301.R

• P4D04.JCJ12.301.L

20

61

20X50

122

14+1dia

3

• P4D05.JCJ14.301.R

• P4D05.JCJ14.301.L

20

70

20X50

130

16+1dia

3

• P4D06.JCJ16.301.R

• P4D06.JCJ16.301.L
